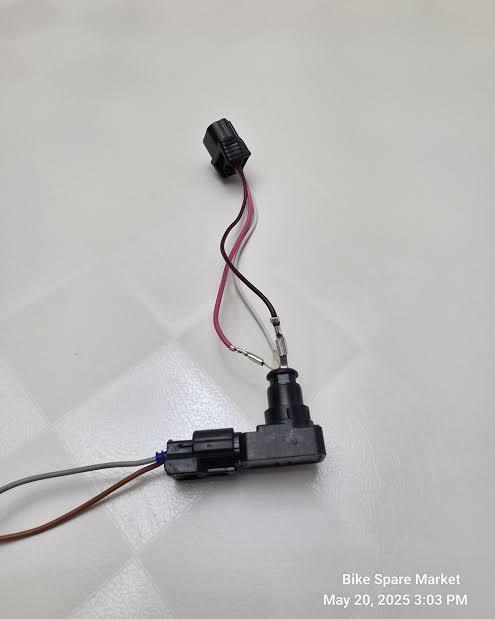

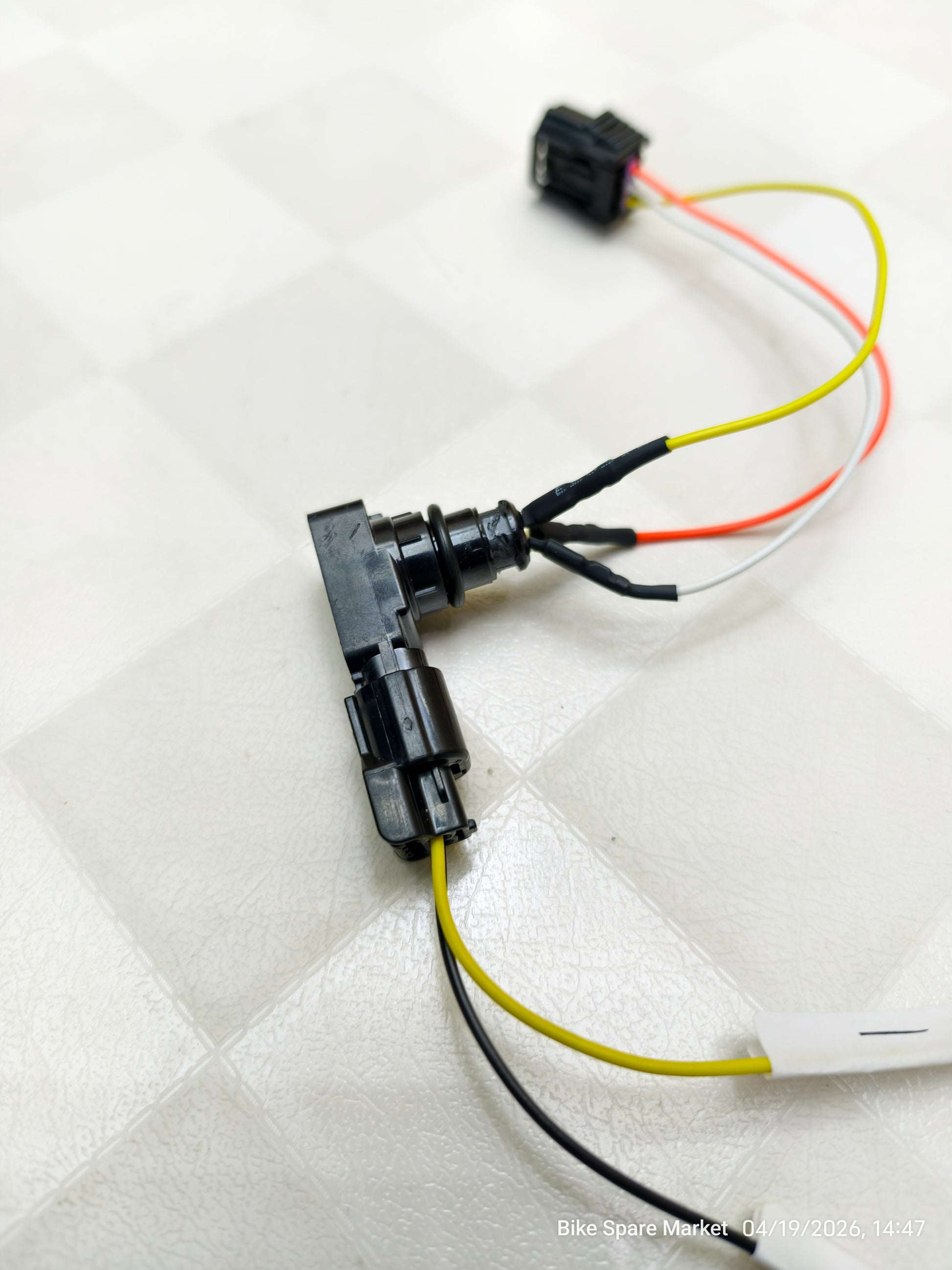

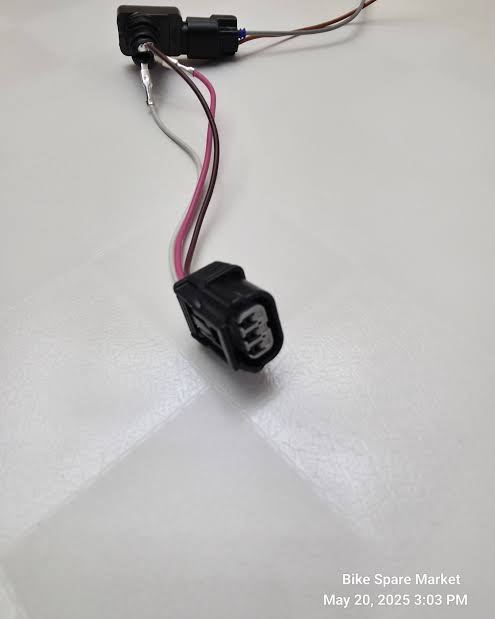

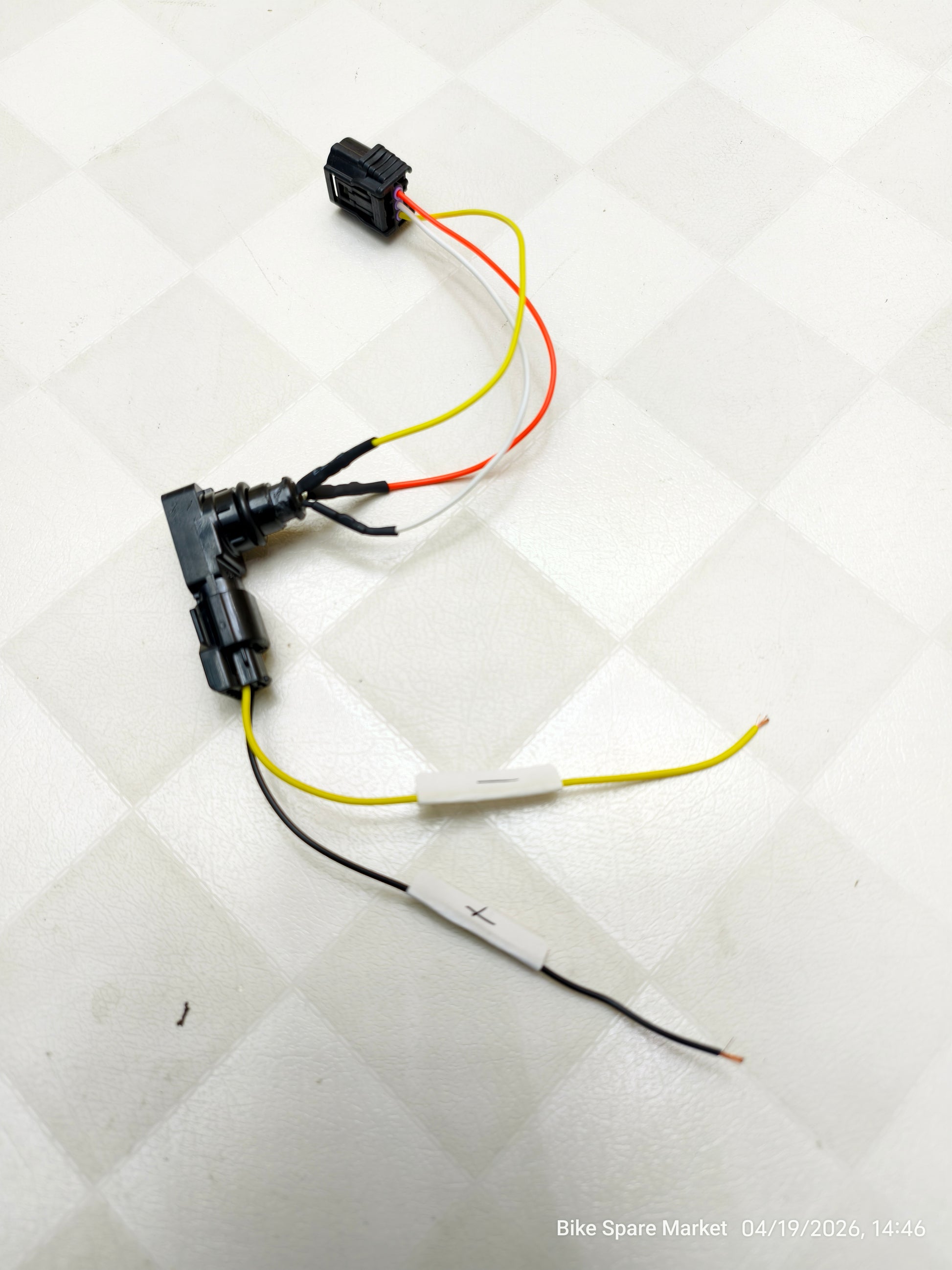

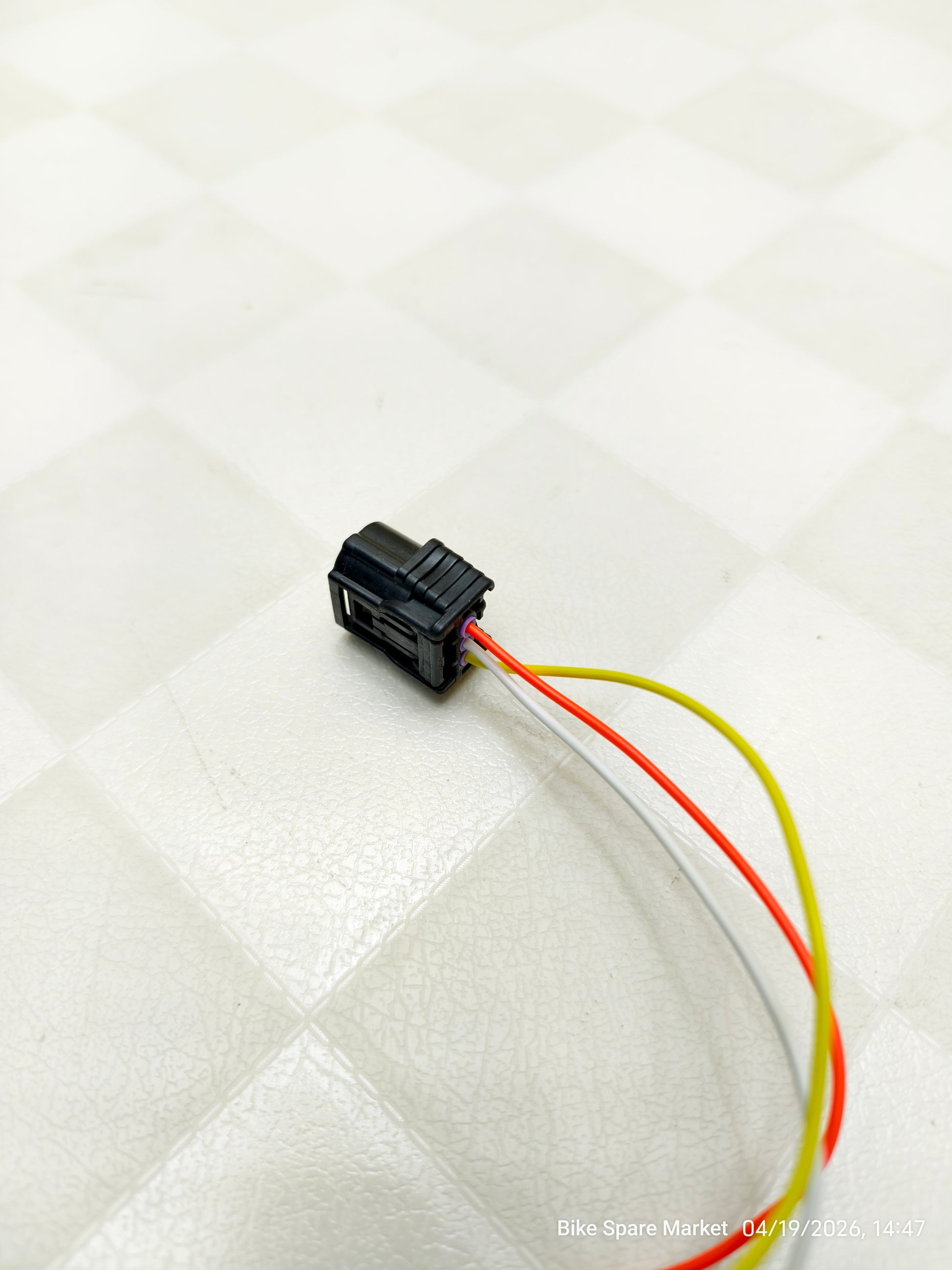

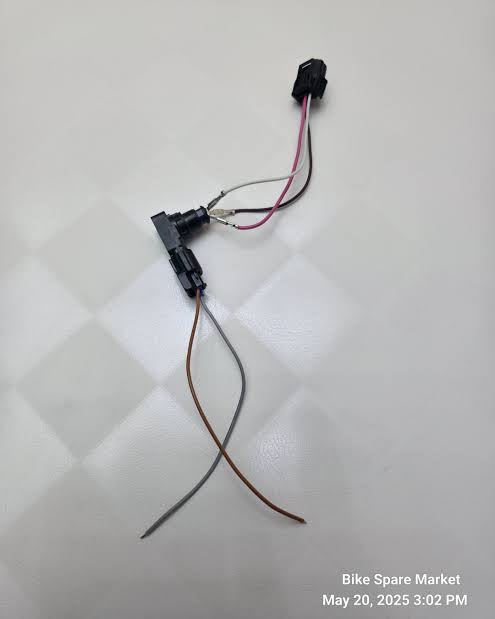

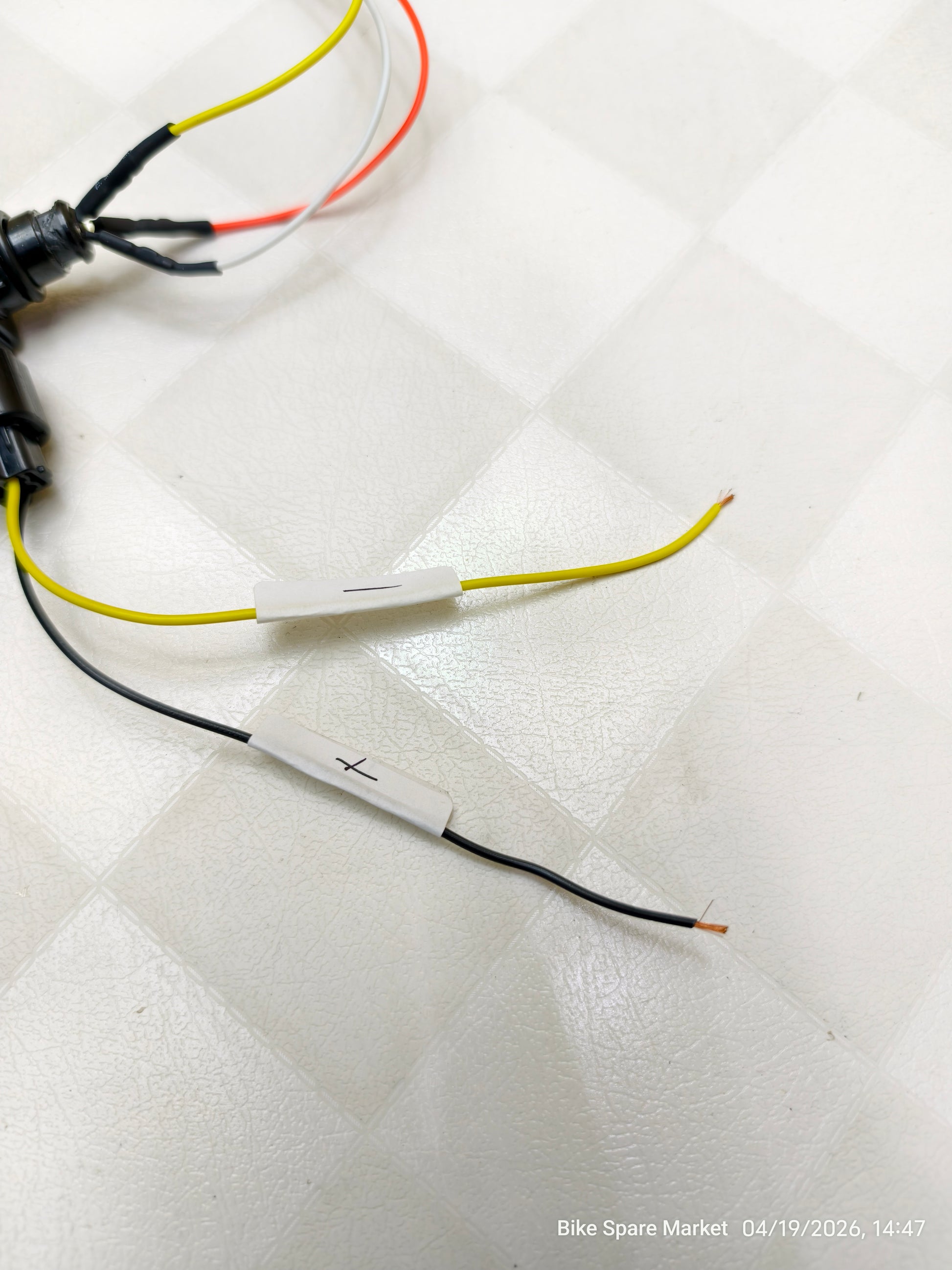

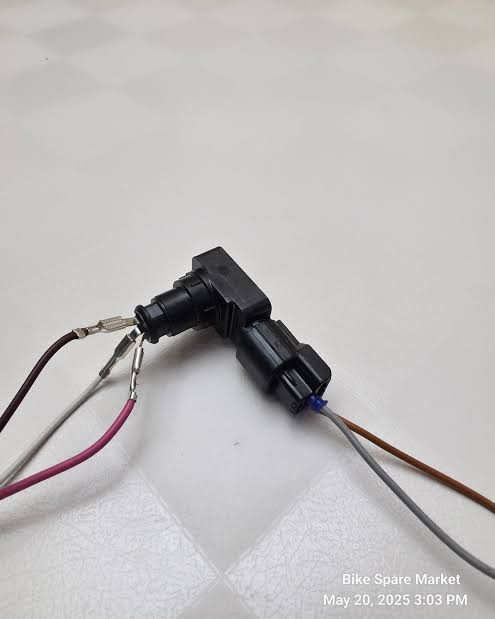

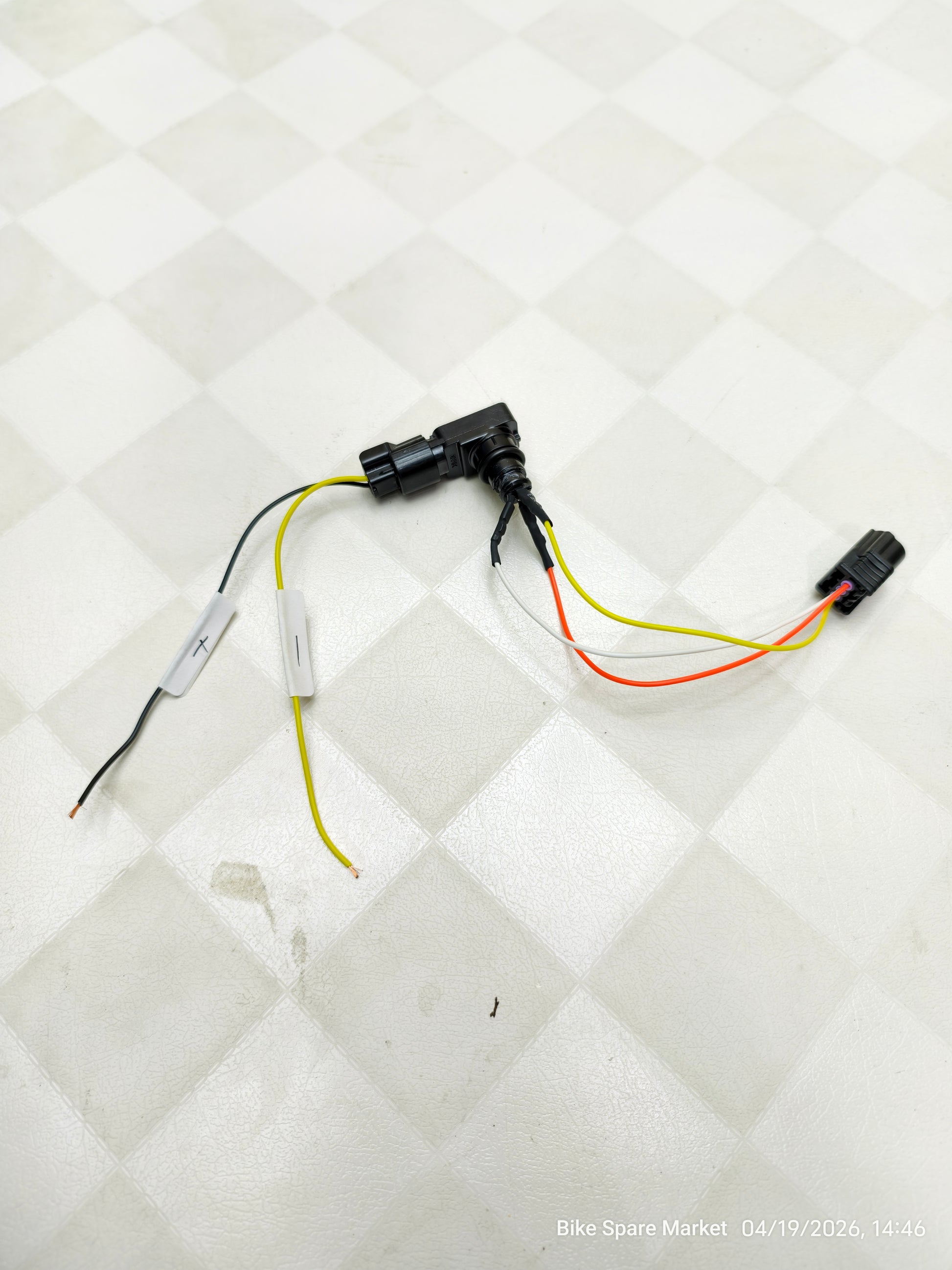

Shine ByPass Tool kit Fuel Pump Ic With Shocket

🔧 What a Fuel Pump Bypass Module Is

A bypass or relay bypass tool replaces or plugs into the fuel pump relay socket in the vehicle’s fuse/relay box.

It directly connects 12 V power to the fuel pump circuit, bypassing the stock fuel pump control (ECU + relay).

This allows testing of pump operation, diagnosing wiring issues, or running the pump when the normal relay/circuit has failed.

Many kits use simple manually activated relays or jumper connectors rather than a sealed “IC” you might see in electronics.

📌 Typical Features / Description

Here’s how such a fuel pump bypass unit is typically described:

Plugs into relay socket: Fits directly into the vehicle’s fuel pump relay socket/fuse box in place of the stock relay.

Direct power feed: Connects battery 12 V to the fuel pump line to force the pump to run.

Manual control: Often includes a small switch or removable connector to turn the pump on/off manually.

Socket compatibility: Designed to match common automotive relay sockets (e.g., Bosch 4-pin or 5-pin types used in many bikes/cars) — not a microprocessor socket.

Note: These tools are for testing/diagnosis — not long-term driving. Running a pump without proper ECU control can be dangerous (no safety shutoff in accidents, potential over-voltage, etc.).

🧰 Example Product / Equivalent

Here’s an example diagnostic tool that functions similarly (used in automotive electrical testing):

Innovative Products of America Fuel Pump Relay Bypass Switch

A relay bypass switch that plugs into a standard automotive relay socket and allows direct power control of the fuel pump circuit.

📌 If You Meant a Specific Honda Shine Part

If your query was specifically about Honda Shine / Shine BS6 motorcycle fuel pump IC bypass:

Motorcycles like the Honda Shine BS6 typically don’t have a standalone “fuel pump IC” like cars — they have a fuel pump controller or relay module inside the body harness.

Bypassing it usually means locating the fuel pump relay/socket in the bike’s fuse box and using a jumper to apply 12 V to the pump feed — similar in principle to automotive tools above.
